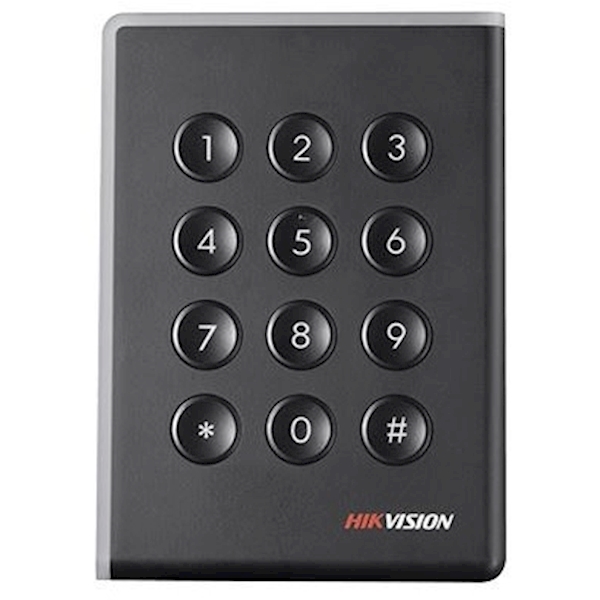

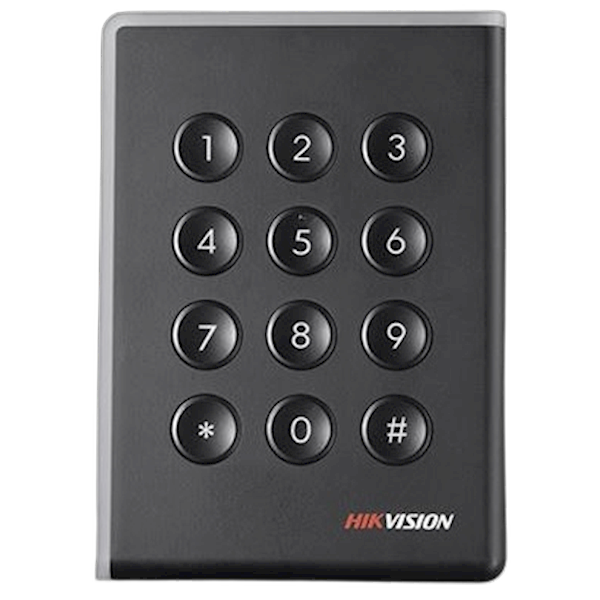

Kaartlezer groot, codetoetsen, EM
System Parameters
Processor: | 32-bit
Card Reading Distance: | 3-8CM
ID Settings: | Setting by the DIP Switch on the Main Board
Device Interfaces
Communication Mode: | RS485/Wiegand( Set via DIP Switch)
General
Key Board: | No Keypad (DS-K1108E and DS-K1108M)
Keypad with 12 Keys (0~9, *, #) (DS-K1108EK and DS-K1108MK)
Radio Frequency Standard: | ISO 14443-A
Prompt: | Buzzer
LED Indicator: | Power Indicator; Status LED Indicator
Working Temperature : | -20°C to +65°C
Working Humidity: | 10% to 90% (Non-Condensing)
Dimensions (L×W×H): | 123*88*21(mm)
Protection Level: | IP 65
Installation: | Wall Mounting with/without Gang Box
Temper-Proof: | Support
